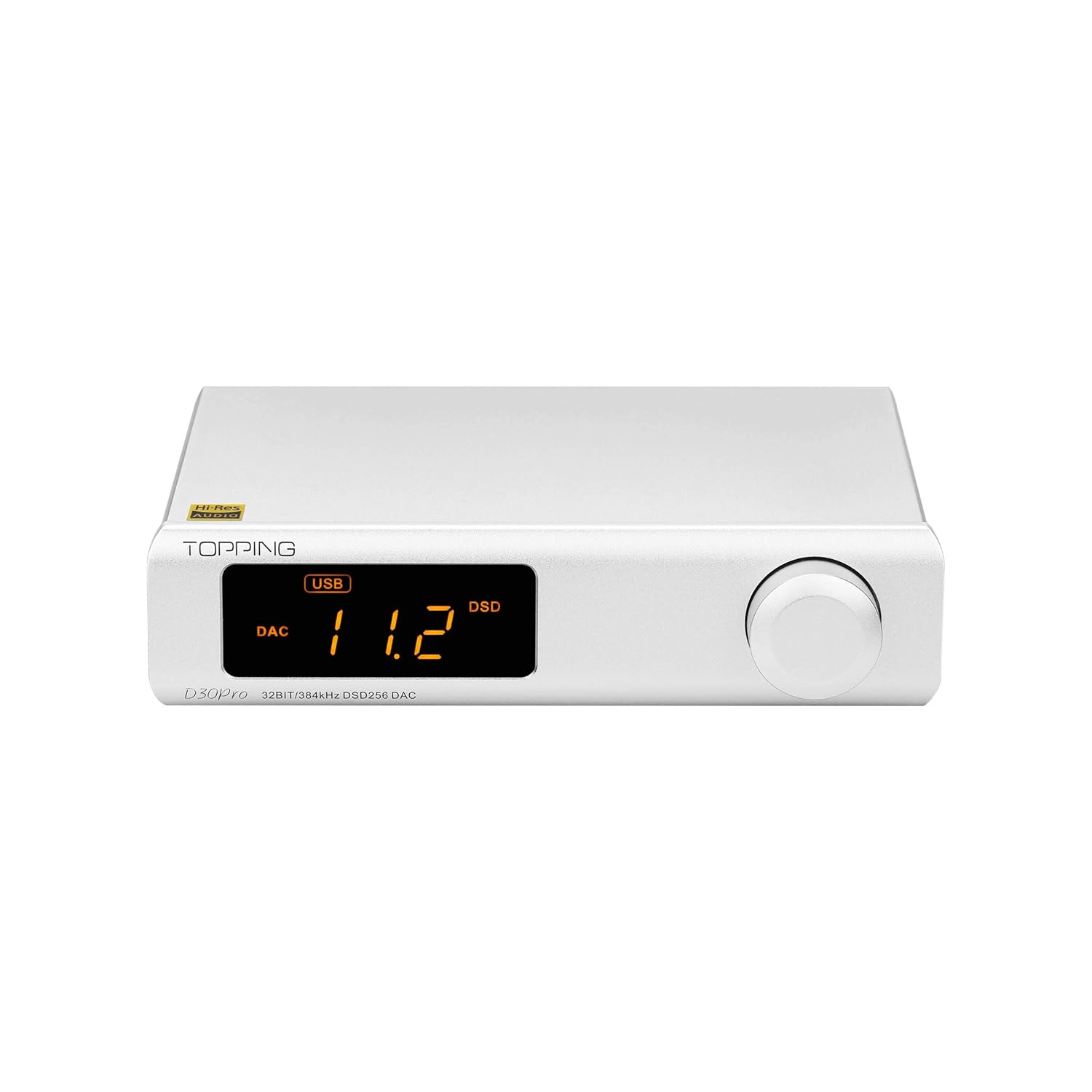

Silver Balanced DAC Decoder 32Bit 384kHz Y6713
Silver Balanced DAC Decoder 32Bit 384kHz Y6713
Enjoy an immersive experience - The D30Pro's THD + N is no more than 0.00009% ��, which means the D30Pro will accurately restore 99.99991% of the original sound
Multiple Port Channels - The 4 x CS43198 offer a total of 8 fully balanced channels. Each channel of the D30Pro is thus arranged in parallel by 4 conventional symmetrical channels. The increase in output power brings changes in the sound and the specification is also improved
High Resolution - USB support DSD256 & PCM384kHz high-resolution audio: D30Pro uses 8-core XMOS XU208 of the 2nd generation, USB supports up to PCM32bit 384kHz and DSD256 natively. With the help of the adapted Thesycon driver (for Win 7 or higher). (Mac does not need a driver to achieve ASIO) Connect directly to the PC without installing the drivers, set the desired sampling rate and then enjoy! Coaxial and optical input support Dop DSD64 & PCM24bit192kHz.
Diversified Uses - D30Pro has a full balanced XLR output and a single-ended RCA output. You can choose between ��XLR only��, ��RCA only�� or ��XL R + RCA�� output to meet different uses in the various systems
Clear division of labor - CPLD focuses on clock processing and digital signal optimization to recreate the digital signal.We use up to 8 independent LDOS to supply power to different loads,so there is no longer interference between different loads
SPECIFICATION
Tube type: 6K4
THD + N ratio: 0.03%
SNR: 100dB
Frequency response: 20Hz-20kHz
RCA output / RCA RMS level: 2Vrms
Input: Cinch
Output: Cinch
Operation: Volume control / bass and treble controls
Power supply: DC 12V 1A
Size: 100x 95x32mm
Weight: 0.45kg
Package includes: 1 x tube preamplifier, 2 x 6K4 tubes, 1 x power supply, 1 x user manual, 1 x safety c
SPEC:
USB-IN:
PCM: 44,1 kHz-384 kHz/1 6bit-32bit
DSD:DSD DSD64-DSD256 (nativ)��DSD64-DSD128 (Dop)
KOAXEN/OPT-IN:
PCM: PCM 44,1 kHz-192 kHz/16 Bit-24 Bit
DSD:DSD DSD64(Dop)
D30 pro Dekodierungsparameter (USB In@96kHz)
LINE-OUT-Cinch
Klirrfaktor+N@A-Gew:<0,0001 % @1kHz
THD@No-wt 45kBw:<0,0004% @20-20kHz
SNR@A-wt:127dB @1kHz
Dynamikbereich @A-wt:127dB @1kHz
Frequenzgang:
20Hz-20kHz(��0,1dB)
20Hz-40kHz(��0,3dB)
Ausgangsspannung: 2Vrms @ 0dBFS
Rauschen @A-wt:<0.9uVrms
��bersprechen:-116dB @1kHz
Ausgangsimpedanz: 20��
LINE-OUT XLR
Klirrfaktor+N@A-Gew:<0,00009% @1kHz
THD@No-wt 45kBw:<0,0004% @20-20kHz
SNR@A-wt:132dB @1kHz
Dynamikbereich @A-wt:132dB @1kHz
Frequenzgang:
20Hz-20kHz(��0,1dB)
20Hz-40kHz(��0,3dB)
Ausgangsspannung: 4Vrms @ 0dBFS
Rauschen @A-wt:<1.1uVrms
��bersprechen:-145dB @1kHz
Ausgangsimpedanz: 40��
ard / 1 year warranty
