Hydraulic Top Link Cat. 1-1 with Locking Block M872694

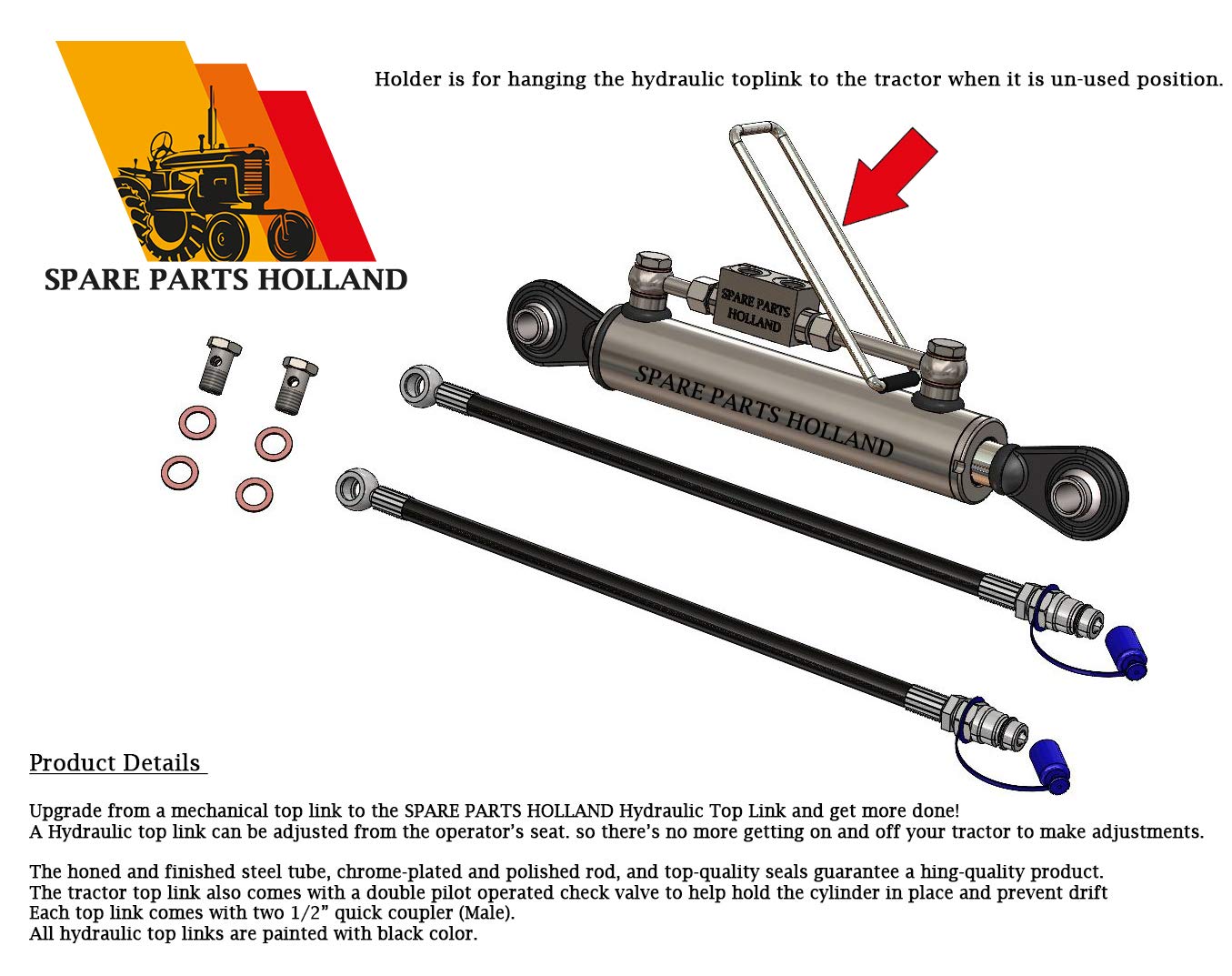

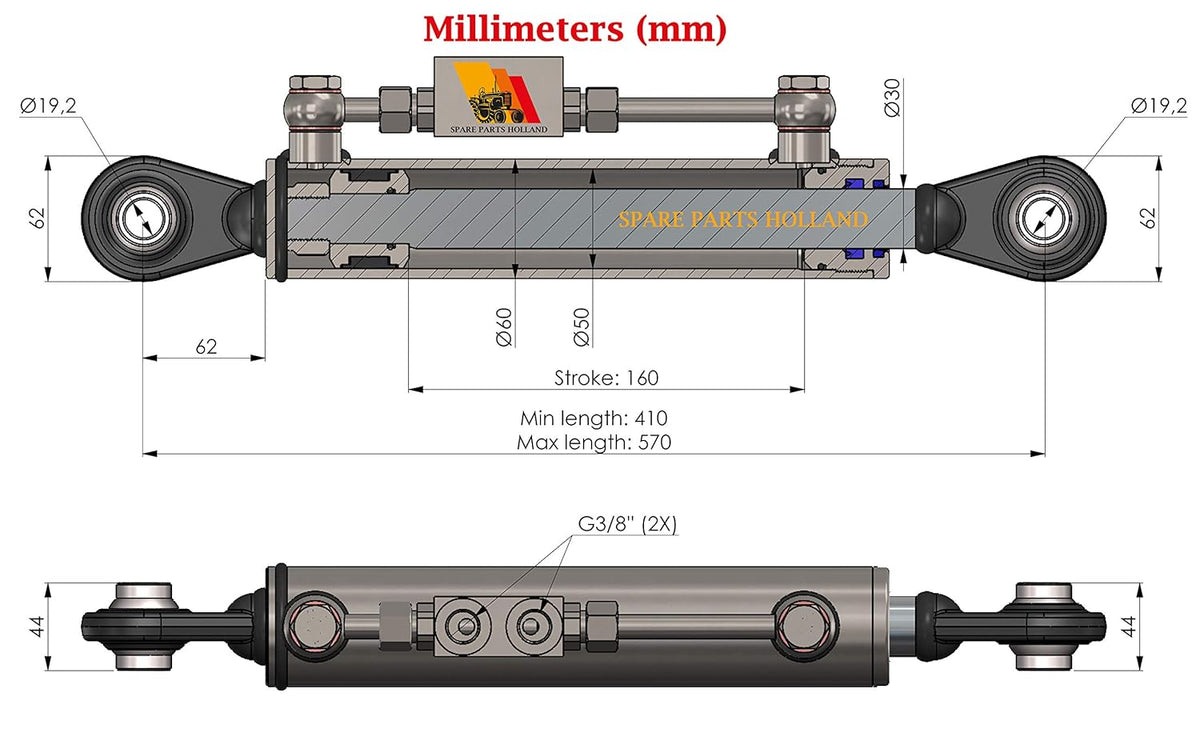

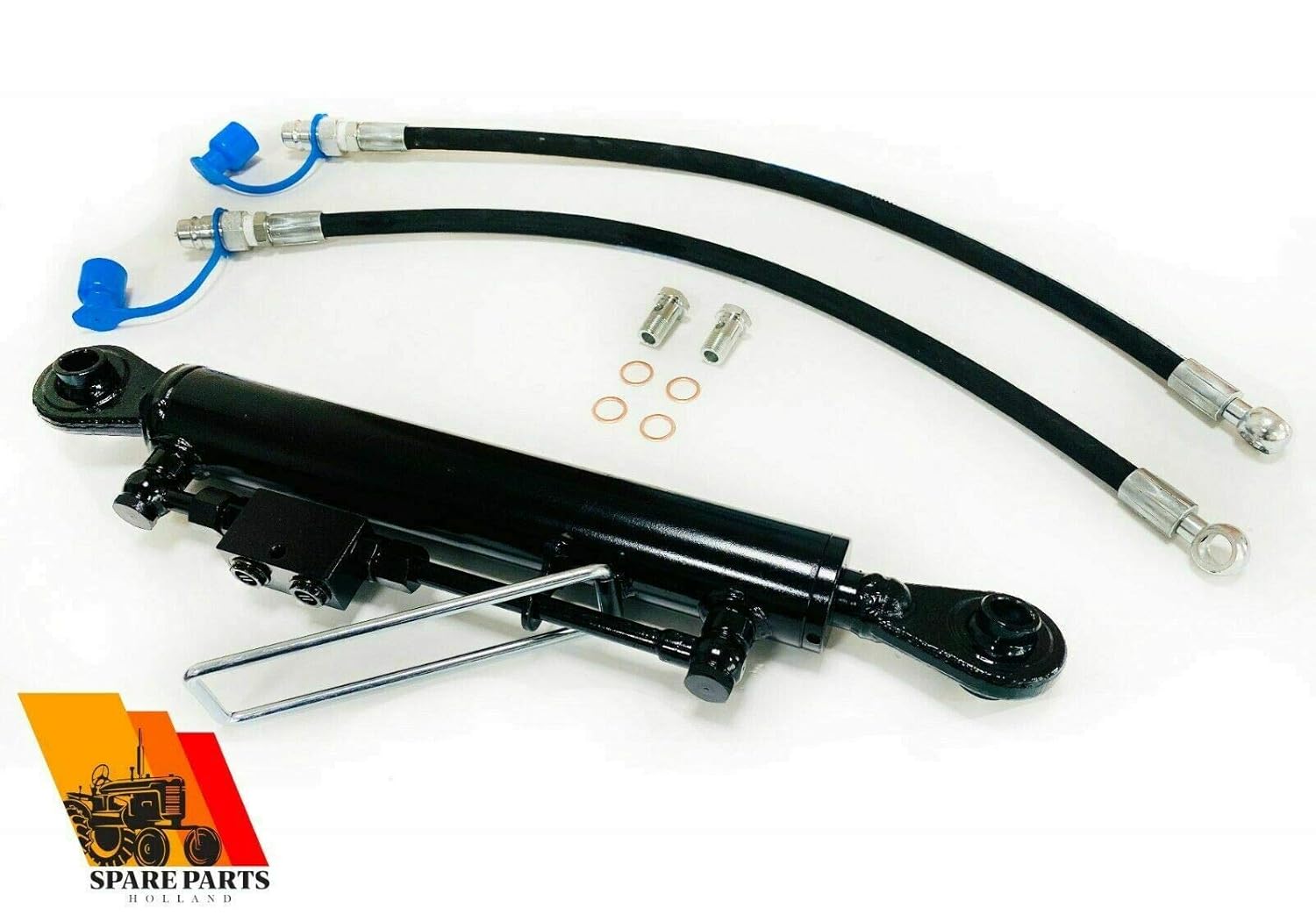

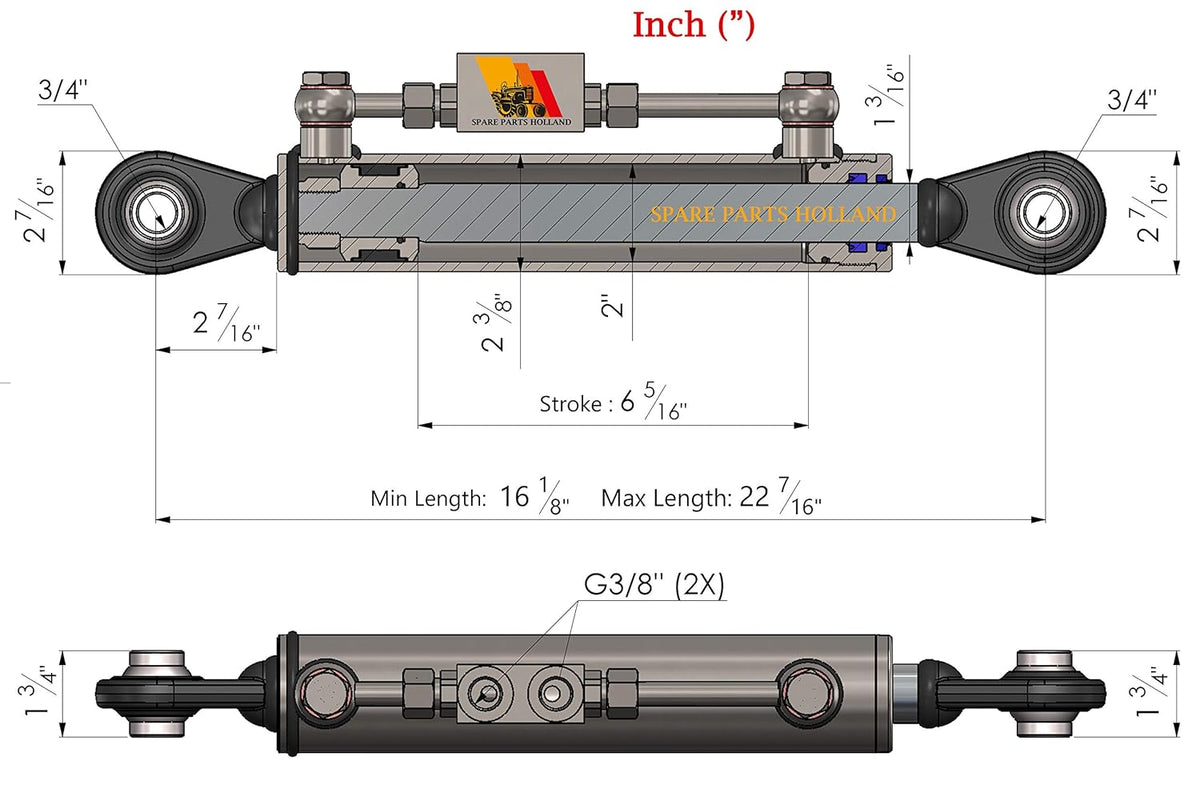

Hydraulic Top Link Cat. 1-1 With Locking Block 16 1/8” - 22 7/16” With 2 x Hose Description: The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. A double-acting control valve on the tractor is necessary for this - an unbeatable combination in combination with the integrated locking block *. * When adjusting the upper link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top links without a locking block, as the tractor's control units do not lock so tightly. This top link is therefore equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve. Only when there is oil pressure from the tractor again does the valve open and the cylinder can be adjusted. Furnishing: High quality and workmanship and painted Incl. Locking block Top link cat. 1 2x hydraulic connection Delivery is completely assembled Technical specifications: Hydraulic connection: 3/8 ' E: 410-570 mm A: 50 mm W: 60 mm C: 30 mm M: 62 mm N: 44 mm H: 19.2 mm F: 62 mm D: 160 mm (stroke) Hydraulic pressure max. 250 bar Thrust: 3.5 to Pulling force: 2.3 to Weight about 8 kg + 2 x hydraulic hose with plug and dust cover Technical specifications: Connection: 12-L bulkhead size 3 (usual coupling connector), 18-1.5 SW22 nipple + union Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330 Operating pressure: 330 bar Length: 75 cm
