12V/DC Double Acting Hydraulic Pump Unit with Metal Reservoir Q2738
Sale price
$25.90
Regular price $103.94
Skip to product information

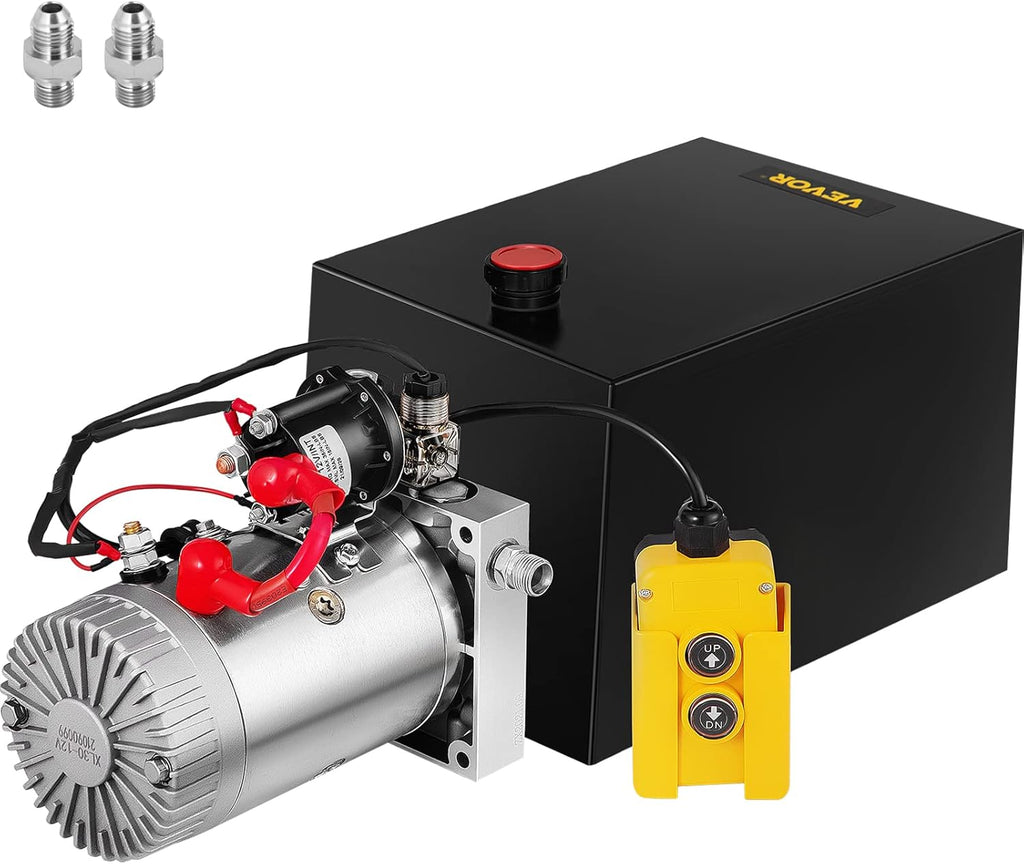

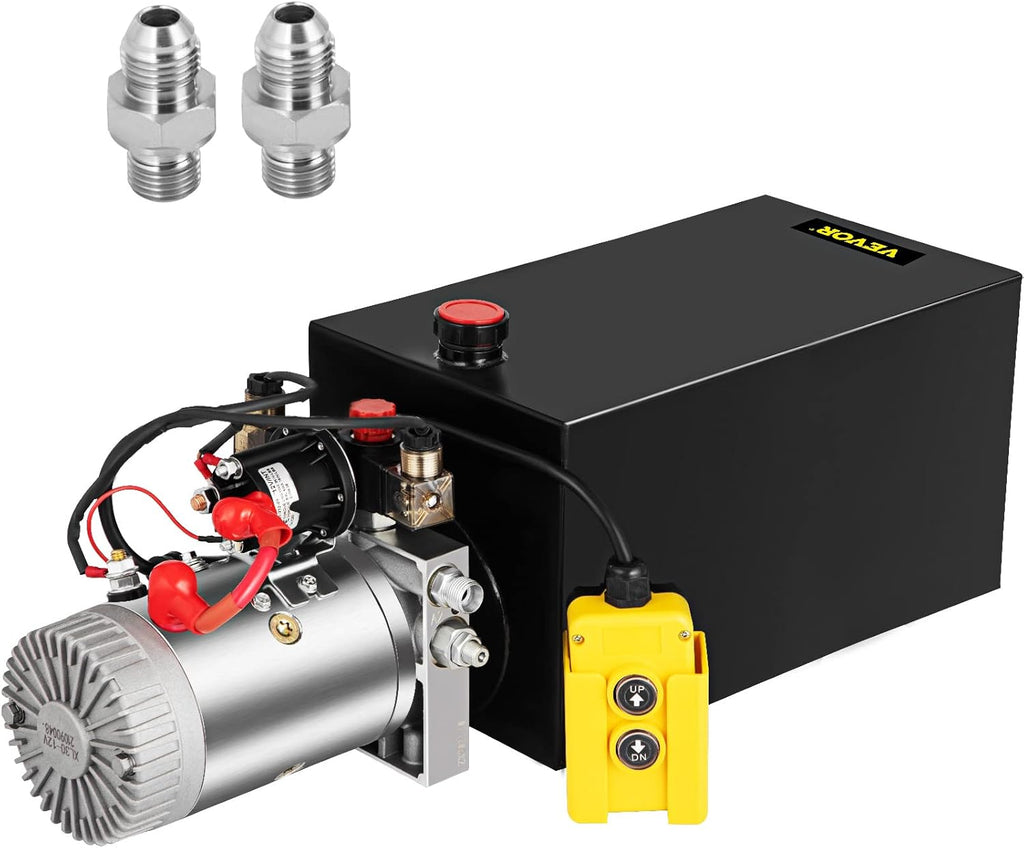

Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 15-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. It includes a 15 ft remote control and two additional SAE#6 connectors are provided for replacement.Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it avoids overpressure, safer and reliable.Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
12V/DC Double Acting Hydraulic Pump Unit with Metal Reservoir Q2738
Sale price
$25.90
Regular price $103.94
Shipping calculated at checkout.
| Hydraulic Pump 6 Quart | Hydraulic Pump 8 Quart | Hydraulic Pump 10 Quart | Hydraulic Pump 12 Quart | Hydraulic Pump 20 Quart | |
|---|---|---|---|---|---|
| Pressure | 17.5MPA | 17.5MPA | 17.5MPA | 17.5MPA | 17.5MPA |
| Rotating Speed | 2850R/MIN | 2850R/MIN | 2850R/MIN | 2850R/MIN | 2850R/MIN |
| Power | 1.6KW | 1.6KW | 1.6KW | 1.6KW | 1.6KW |
| Voltage | DC 12V | DC 12V | DC 12V | DC 12V | DC 12V |
| Reservoir Capacity | 1.5 gallon | 2 gallon | 2.5 gallon | 3.17 gallon | 3.25 gallon |
| Flow | 2GPM | 2GPM | 2GPM | 2GPM | 2GPM |
| Traffic | 1.1ML/R | 1.1ML/R | 1.1ML/R | 1.1ML/R | 1.1ML/R |
| Action | Double Acting | Double Acting | Double Acting | Double Acting | Double Acting |
